Air Treatment Products
Dryers, Filters & Separators for Compressed Air Systems in Vapi
Browse our selection of air dryers, filters and separators. Protect your systems, your tools and the environment with the latest in air treatment technology from R R Enterprise.
Air Treatment
Protect Your SystemProtect Your Compressed Air System With the Right Air Treatment
Browse our selection of air dryers, filters and separators — the latest within air treatment. Protecting your compressed air system with the right treatment products also protects the environment, keeping oil and contaminants out of your drain water.
With our air treatment products we enhance peace of mind regarding your compressed air system. Air treatment reduces operating costs, prevents tool degeneration and keeps dangerous substances out of your drain water.
With easy access to critical components, our products offer easy to operate, easy to maintain solutions for businesses of every size — from single compressor rooms to full pharmaceutical and industrial air networks.
Why You Need the Right Air Treatment
Three reasons air treatment matters for every compressed air system, regardless of industry.
Reliable
Our air treatment range is built for consistent, dependable performance across dryers, filters, drains and receivers — protecting your compressed air system day in, day out.
Easy to Operate
Easy access to critical components means our products are simple to install, operate and maintain, with minimal downtime for your team.
Peace of Mind
Reduce costs, prevent tool degeneration and keep dangerous substances out of your drain water with a properly treated compressed air supply.
Types of Air Treatment We Supply
Filter by product type, or click any product below to view details, images and key features.

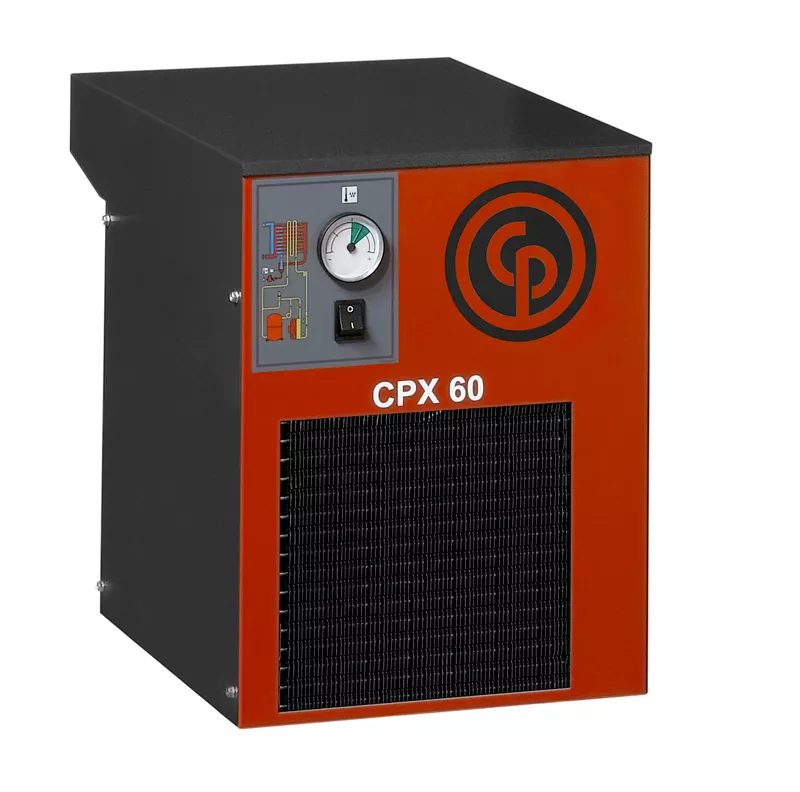

Refrigerated Dryers - CPX Series
Refrigerated dryers by Chicago Pneumatic reliably remove condensate to deliver perfectly dry compressed air, with dewpoint as low as +3°C. Light, compact design that does not require any special equipment for installation.
Compact design · Low maintenance

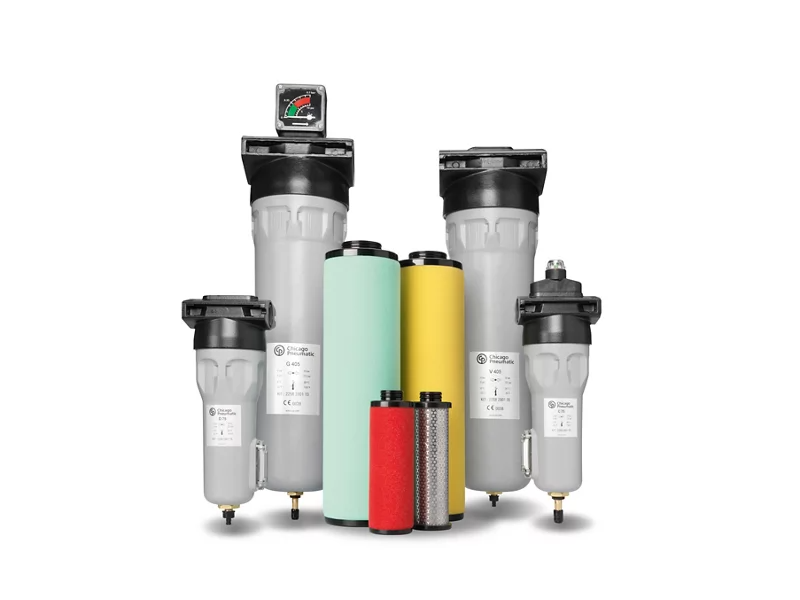

Line Filters
Atmospheric air contains impurities such as dust, hydrocarbons and humidity, which get compressed and delivered to the line along with oily particles. Our line filters remove this contamination to protect your equipment.
Triple filtering · Minimum pressure drop

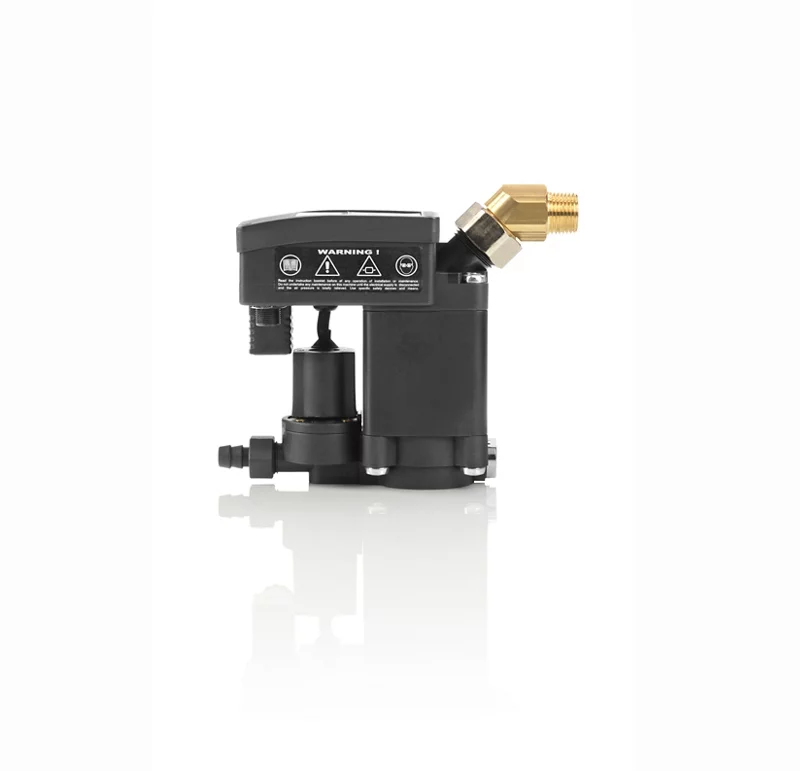

Condensate Drains
Automatic condensate drains remove condensate from your compressed air network, greatly reducing the risk of destructive wear to your air distribution system.
Automatic discharge · Reduced wear

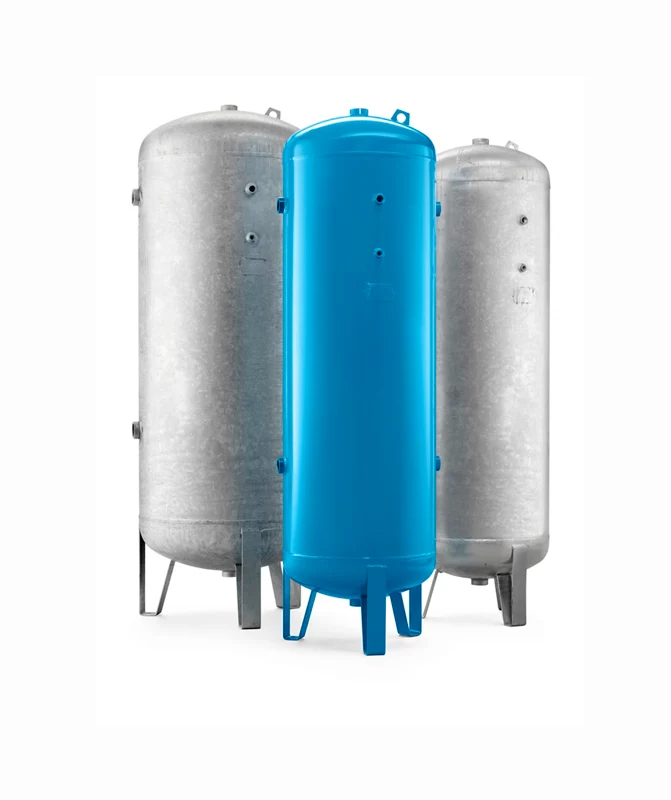

Air Receivers
Suitable for any compressed air application, our air receivers decrease the risk of unstable pressure peaks, condensate build-up and multiple start/stops of the compressor. Available painted, galvanized or vitrified.
Stable pressure · Multiple finishes

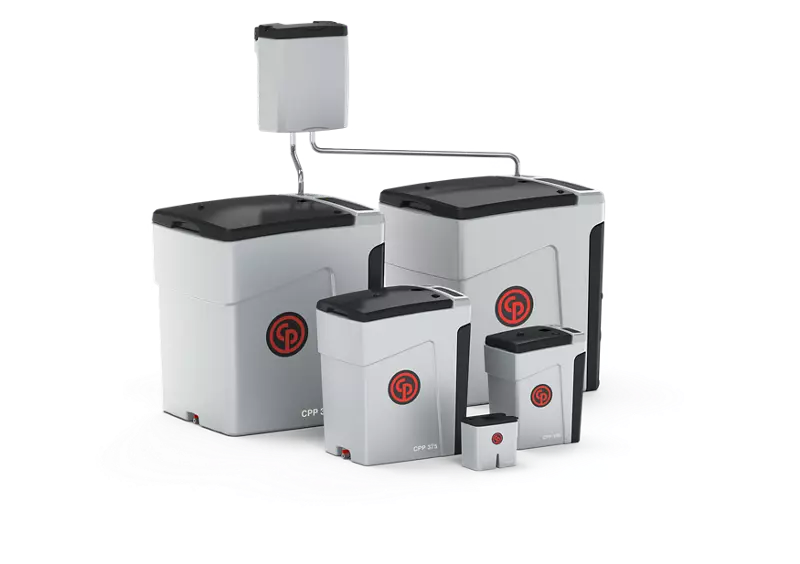

CPP 15 - 3125 Oil-Water Separators
The CPP 15-3125 from Chicago Pneumatic uses innovative dual-stage filtration to safely separate oil from waste water — more effective, easier to use and lower-maintenance than conventional oil-water separators.
Dual-stage filtration · Up to 75% energy recoveryCompressed Air Line Filters — G, C & V Series
Atmospheric air contains dust, hydrocarbons and humidity that are compressed into your line along with oil particles. Chicago Pneumatic line filters remove these contaminants in stages — choose the grade that matches your required air quality.
G Series
- High-efficiency general-purpose protection
- Ideal pre-filter for refrigeration dryers and de-oiling filters
- Removes bulk solids, liquids and oil aerosols down to 0.1 micron
- Excellent low pressure drop
C Series
- High-efficiency oil-removal filtration
- Post-filter for refrigeration dryers, pre-filter for adsorption dryers
- Produces air technically free from oil — exceeds ISO 8573 Class 1
- For painting, lasers, control systems and pneumatic transport
V Series
- Activated carbon removes oil vapour and hydrocarbon odours
- Sustained protection — stops harmful vapours moving downstream
- For pharmaceutical, food, chemical, packaging and quality painting
- Must always be mounted after a C Series or G Series filter
Filter Media Comparison
| Series | Type | Micron Rating | Coalescing Eff. | Max Oil Carryover | Pressure Drop | Element Colour |
|---|---|---|---|---|---|---|
| G | Coalescing (oil removal) | 0.1 µm | 98.5% | 0.1 mg/m³ | 1.2 PSID | Green |
| C | Fine coalescing (oil removal) | 0.01 µm | 99.981% | 0.008 mg/m³ | 1.3 PSID | Red |
| V | Activated carbon (vapour removal) | — | — | 0.005 mg/m³ | 1.7 PSID | Silver |
Ideal Installation Sequence
For clean, dry, technically oil-free air, install the filters in stages around your refrigerated dryer. Each stage lifts the air to a higher ISO 8573-1 quality class.
Recommended for dry air without oil (G + C) and dry air without oil & hydrocarbon odours (add V). Air quality classes per ISO 8573-1: G Series 1.4.1 · C Series < 1.4.1.
Line Filter Technical Data — G & C Series (CPFA)
Flow ratings and dimensions across the CP line-filter range. Reference conditions: 7 bar (100 psi), 20°C.
| Model | Flow (cfm) | Max Pressure (bar) | End Connection | A (mm) | B (mm) | C (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 45 | 25 | 16 | 3/8" | 90 | 21 | 228 | 1 |
| 90 | 55 | 16 | 1/2" | 90 | 21 | 228 | 1.1 |
| 125 | 75 | 16 | 1/2" | 90 | 21 | 228 | 1.3 |
| 180 | 105 | 16 | 3/4" | 110 | 27.5 | 303 | 1.9 |
| 290 | 170 | 16 | 1" | 110 | 27.5 | 303 | 2.1 |
| 505 | 295 | 16 | 1 1/2" | 140 | 34 | 449 | 4.2 |
| 685 | 405 | 16 | 1 1/2" | 140 | 34 | 532 | 4.5 |
| 935 | 550 | 16 | 1 1/2" | 140 | 34 | 532 | 4.6 |
| 1295 | 765 | 16 | 2" | 179 | 50 | 618 | 6.9 |
| 1890 | 1110 | 16 | 3" | 210 | 57 | 720 | 11 |
| 2430 | 1430 | 16 | 3" | 210 | 57 | 720 | 12.6 |
Max operating temperature: 65°C for G & C Series; 35°C for V Series (CPFA). Dimensions A / B / C in mm as per the CP datasheet drawing.
Flow-Rate Correction Factor (by Working Pressure)
Filter flow ratings are quoted at 7 bar. At other pressures, divide the real air flow rate by the correction factor below to get the corrected flow used for sizing.
| Working Pressure (bar) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Pressure (psi) | 29 | 43 | 58 | 72 | 87 | 100 | 116 | 130 | 145 | 159 | 174 | 188 | 200 | 217 | 232 |
| Correction Factor | 0.38 | 0.50 | 0.65 | 0.75 | 0.88 | 1.00 | 1.13 | 1.25 | 1.38 | 1.50 | 1.63 | 1.75 | 1.88 | 2.00 | 2.13 |
Example: corrected flow = actual flow ÷ correction factor for your working pressure. Always select the filter whose rated flow meets or exceeds the corrected flow.
Air Treatment — Frequently Asked Questions
Common questions about Chicago Pneumatic compressed air filters and treatment in Vapi.
A compressor alone only pressurises air — it does not remove the humidity, dust and oil particles that atmospheric air already contains. Once compressed, this humidity turns into condensate and, together with any oily residue, gets pushed into your pipework and downstream equipment. Air treatment products — dryers, filters, drains and separators — remove these contaminants so your tools, instruments and end products stay protected.
Our CPX series refrigerated dryers from Chicago Pneumatic reliably achieve a pressure dewpoint as low as +3°C, which is suitable for the vast majority of general industrial and workshop compressed air applications.
Yes. A refrigerated dryer removes bulk moisture, but line filters are needed to remove dust, oil aerosols and vapour that the dryer does not capture. Most systems use dryers and filters together — the dryer protects against condensate, the filter protects against particulate and oil contamination.
An automatic condensate drain removes accumulated condensate from your air receiver, filters and pipework without manual intervention, using electronic sensors to discharge only condensate and not waste any compressed air. This reduces the risk of destructive wear and removes the need for manual timer-based draining.
Oil-lubricated compressors produce condensate that is an oil-water emulsion. Discharging this directly into drains or sewage is both an environmental hazard and, in most areas, not legally permitted. An oil-water separator such as the CPP 15-3125 separates the oil from the water so only clean water is discharged, while the oil is safely collected for disposal.
Yes. For applications where compressed air contacts the product — such as pharmaceutical manufacturing or food processing — we recommend our range in combination with oil-free compressors and additional sterile-grade filtration. Contact us for a system recommendation specific to your industry and application.
